Highest Conductivity for Premium Applications

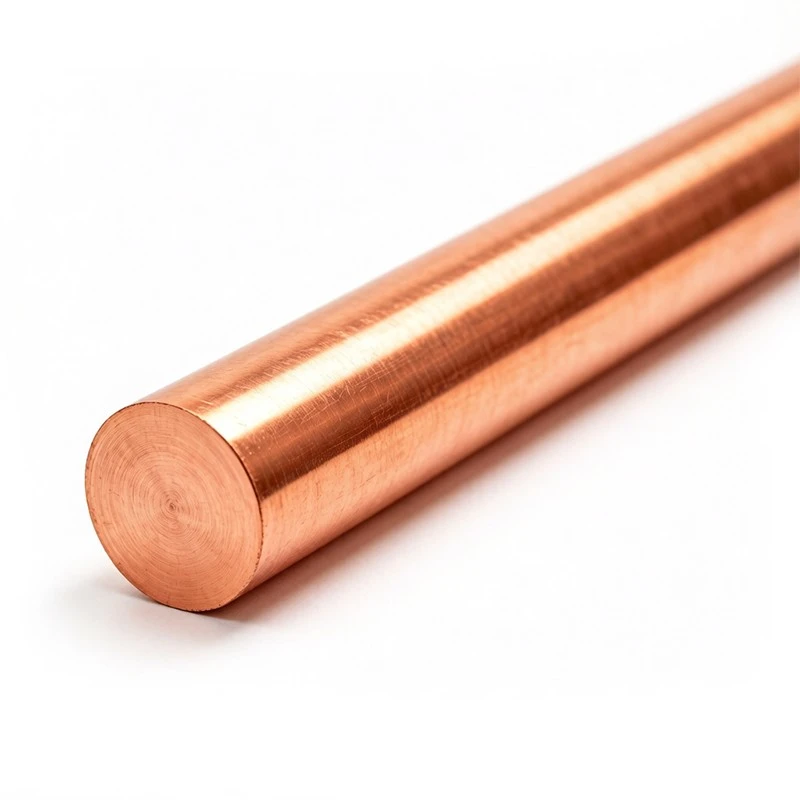

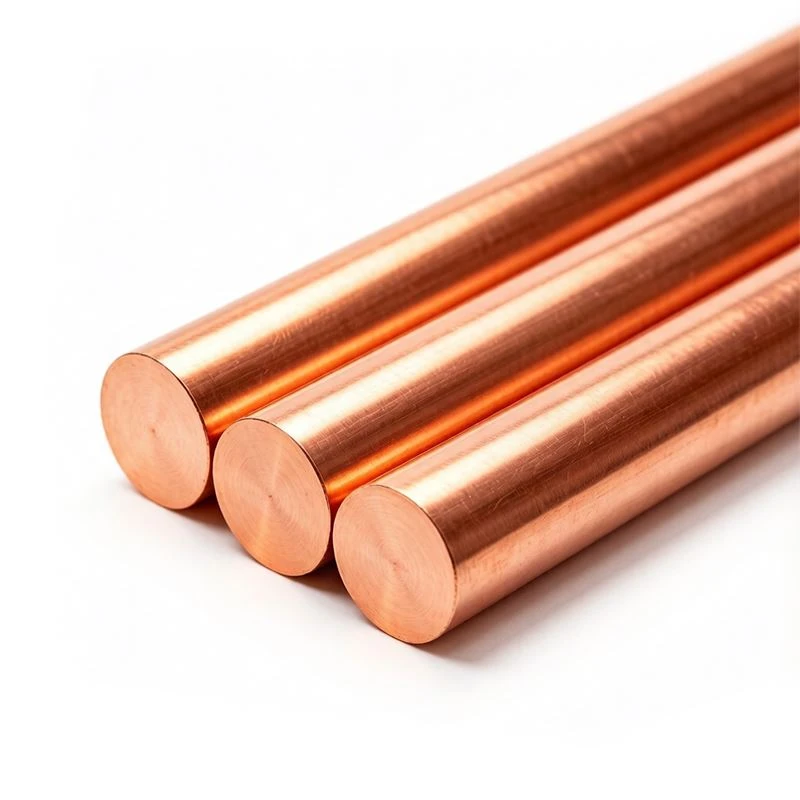

Our OFHC copper wire rod has the best conductivity among our wire rod products. The conductivity reaches ≥97.3% IACS. This means very low energy loss during power transmission. The oxygen content is extremely low. This makes it suitable for the most demanding applications. Our customers in the premium cable sector specify this material. The high purity also improves surface quality. The rod draws smoothly into fine wire. There are fewer breaks and defects. Our team applies very tight process controls when producing this rod. Temperature fluctuations affect conductivity. So we monitor temperature carefully throughout production.
Strict Temperature Control
Cooling speed also affects the final properties. We control the cooling rate precisely. Every production run has complete records. This traceability helps us maintain consistent quality. We can trace any batch back to its production date. This helps with quality investigations if needed. Our workers check the rod surface regularly. They also sample for conductivity testing. The results must meet our internal standards. We keep records of all test results. This documentation supports our quality claims. The rod comes in 16mm and 20mm diameters.
Technical Specifications
Material is T2 copper with high conductivity. Meets GB/T5585.1-2026. Copper purity Cu≥99.90%. Impurities below 0.10%. Conductivity ≥97.3% IACS. Resistivity at 20°C ≤0.0177 Ω·mm²/m. Density 8.9 g/cm³. Tensile strength 220–260 MPa. Yield strength ≥170 MPa. Hardness 65–90 HV. Elongation ≥17%. Stock sizes 16mm and 20mm.
Premium Cable and Electronics Applications
OFHC copper wire rod serves the highest quality cable manufacturers. Precision electronic wire also uses it. Applications with strict energy loss requirements need this grade. We have supplied high-end cable companies for years. Export orders now form a major part of our sales. Before production, we confirm your specifications. During production, we provide updates. Packaging ensures safe delivery. Choose our OFHC rod for top-tier electrical performance.
Technical Parameters
|
Parameter |
Value |
|
Material Grade |
T2 Copper (High-Conductivity OFHC) |
|
Copper Purity |
Cu≥99.90% |
|
Standard |
GB/T5585.1-2026 |
|
Electrical Conductivity |
≥97.3% IACS |
|
Resistivity (20°C) |
≤0.0177 Ω·mm²/m |
|
Density |
8.9 g/cm³ |
|
Tensile Strength |
220–260 MPa |
|
Yield Strength |
≥170 MPa |
|
Hardness |
65–90 HV |
|
Elongation |
≥17% |
|
Stock Sizes |
16mm, 20mm |
