Cost-Effective Choice with Good Performance

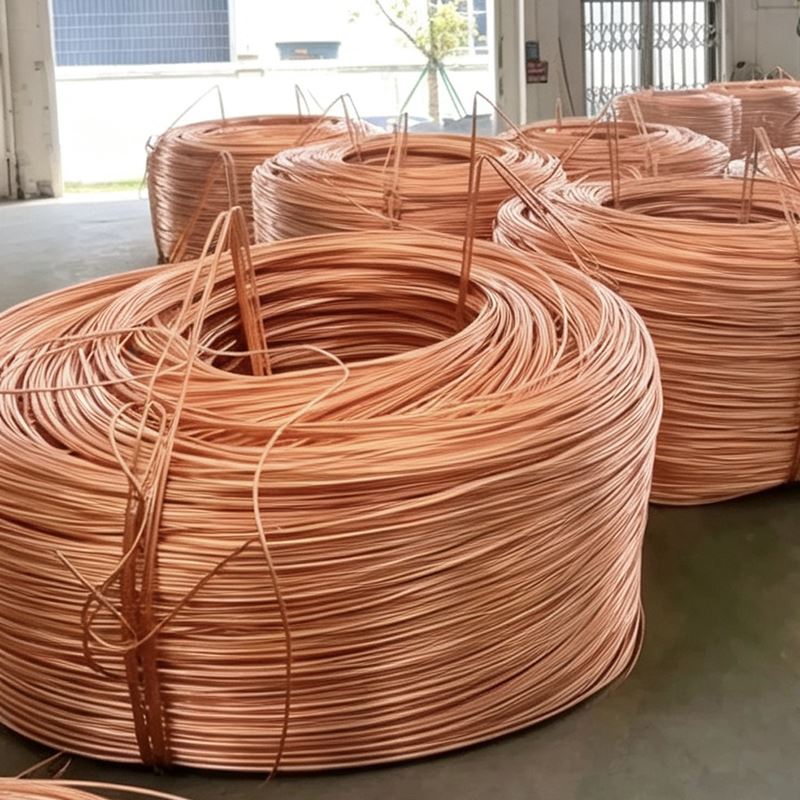

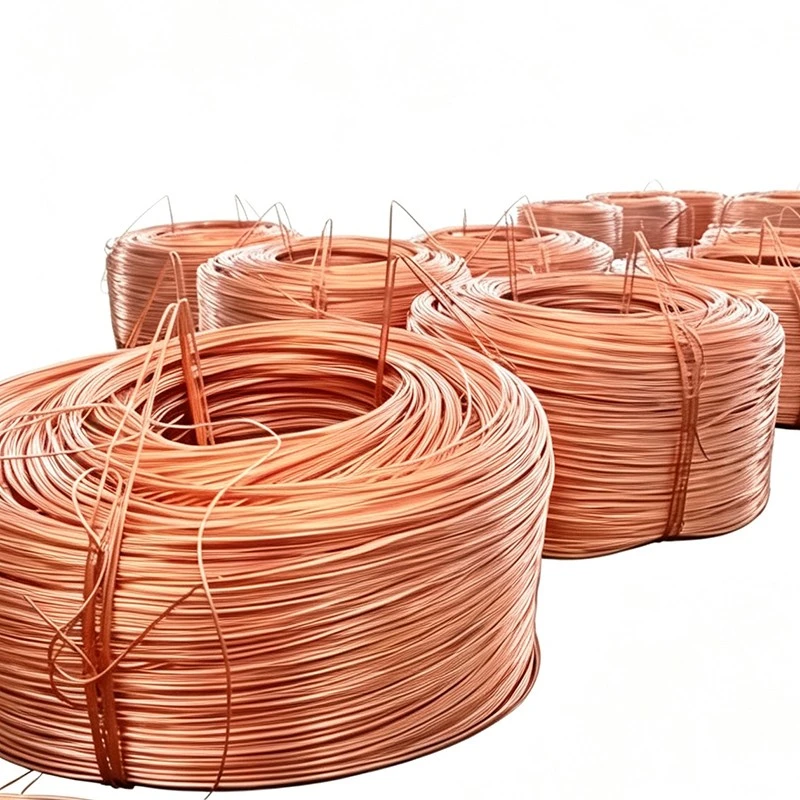

Our ETP copper rod offers a balanced solution for many customers. It has slightly higher oxygen content than oxygen-free material. But it costs less to produce. The price difference is significant. Many cable manufacturers choose ETP when they do not need maximum conductivity. The performance remains good for most applications. Our team monitors the oxide layer during production. A thick oxide layer affects downstream drawing. We control the oxide thickness through cooling water adjustment. This method came from years of experience. Our workers have refined the process over many runs. The result is a consistent product at a competitive price.
Oxide Layer Control
The oxide layer on ETP rod must stay within a specific range. Too much oxide and the wire breaks during drawing. Too little oxide and the rod surface may suffer. Our cooling system applies water at the right flow rate. This controls oxidation effectively. We test samples regularly to verify the oxide thickness. The visual appearance also tells us a lot. A uniform color indicates consistent oxidation. Our workers check every coil. We also monitor the copper temperature. Temperature affects oxidation rates. Our process keeps temperature within a narrow band. This helps maintain consistency.
Technical Specifications
ETP copper rod comes in 16mm and 20mm diameters. Material is T2 copper. Meets GB/T5585.1-2026. Copper purity Cu≥99.90%. Impurities below 0.10%. Conductivity ≥97.3% IACS. Resistivity ≤0.0177 Ω·mm²/m at 20°C. Density 8.9 g/cm³. Tensile strength 220–260 MPa. Yield strength ≥170 MPa. Hardness 65–90 HV. Elongation ≥17%.
Applications for General Use
ETP copper rod works well for standard cable production. General wire applications also use it. The cost advantage makes it popular. Copper wire processing benefits from its price point. We supply cable manufacturers across many industries. Export orders continue to grow. Before production, we confirm your requirements. Packaging protects the rod during transit. We stand behind the quality of our material.
Technical Parameters
|
Parameter |
Value |
|
Material Grade |
T2 Copper (Low Oxygen) |
|
Copper Purity |
Cu≥99.90% |
|
Standard |
GB/T5585.1-2026 |
|
Electrical Conductivity |
≥97.3% IACS |
|
Resistivity (20°C) |
≤0.0177 Ω·mm²/m |
|
Density |
8.9 g/cm³ |
|
Tensile Strength |
220–260 MPa |
|
Yield Strength |
≥170 MPa |
|
Hardness |
65–90 HV |
|
Elongation |
≥17% |
|
Stock Sizes |
16mm, 20mm |
