Parallel Sides for Clamping and Bridging

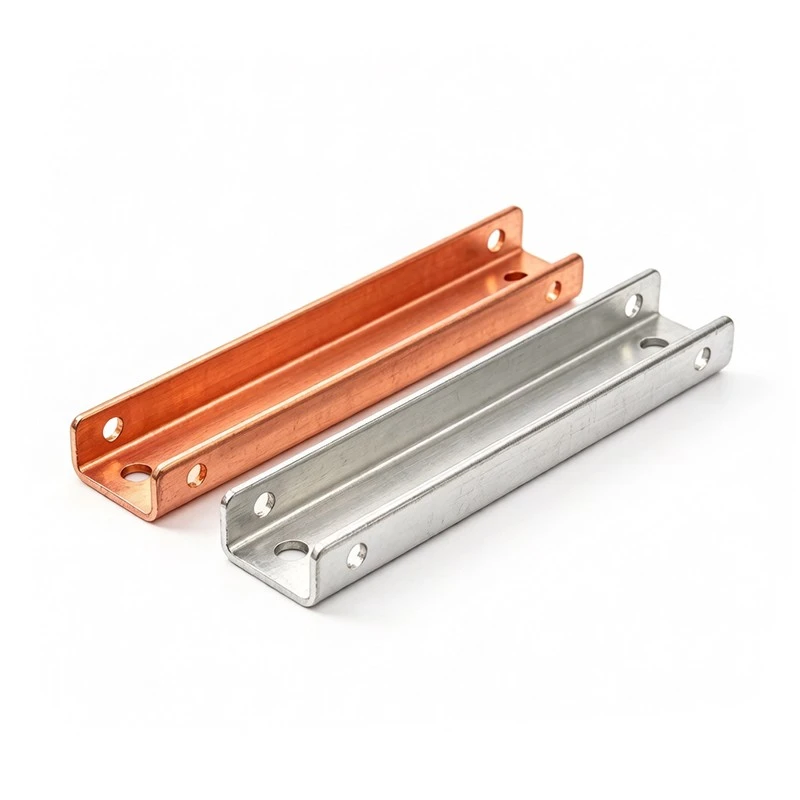

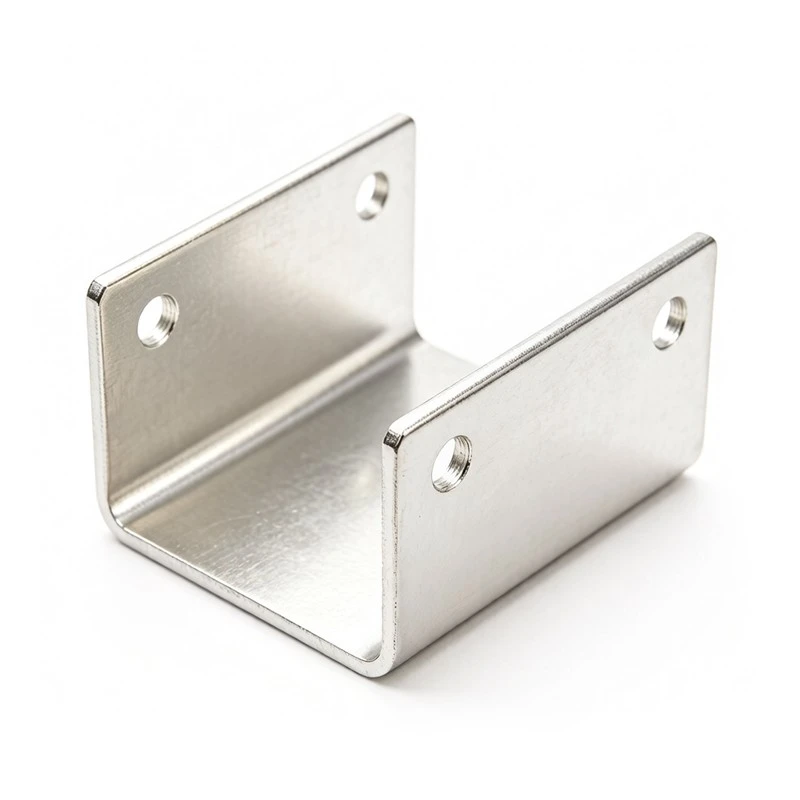

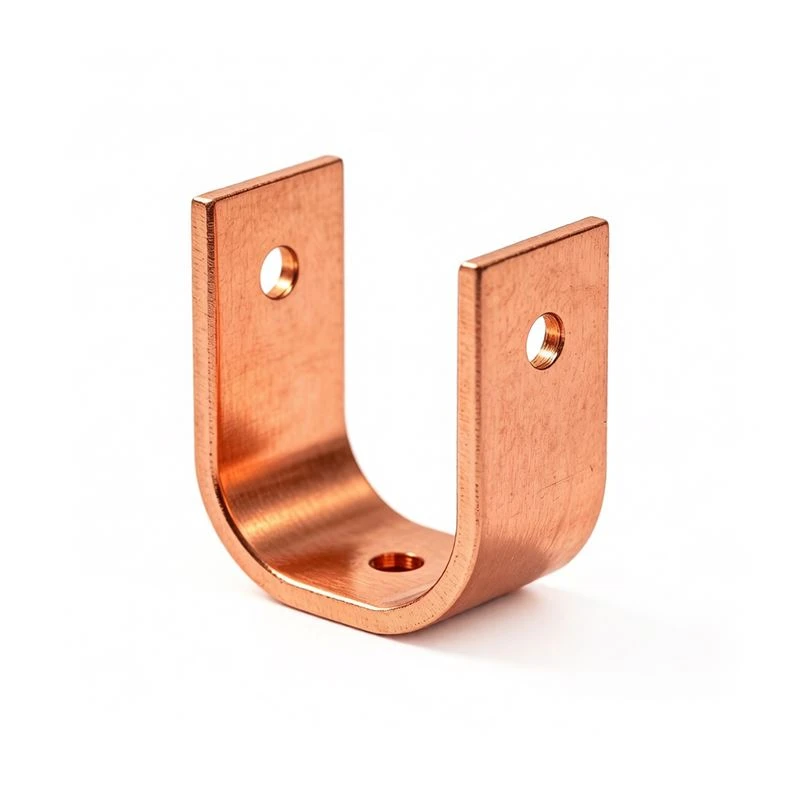

Our U shaped copper busbar has a cross-section shaped like the letter U. Two parallel sides connect through a flat bottom. This shape solves a common installation challenge. It can clamp onto a busbar or make a bridge connection. The two parallel sides touch two conductive surfaces simultaneously. This doubles the contact area compared to a single flat bar. More contact area means lower resistance and less heating. Our team focuses on the parallelism of the two sides. If the sides are not parallel, the piece will not fit. We use special fixtures during bending to maintain parallelism. Every piece gets checked for width and side alignment.
Parallelism Control and Dimensional Accuracy
Our bending fixtures hold the material securely during forming. This prevents side-to-side variation. The fixtures also control the distance between sides. This dimension is critical for proper fit. We measure the width and side alignment on every piece. Any deviation beyond tolerance triggers a process review. The bend quality also matters. The bottom corner must have the correct radius. Too tight and the material may crack. Too loose and the shape may not fit. Our workers have developed a reliable process for U-shaped bends. They adjust the settings based on material thickness. The result is consistent quality across all orders.
Custom Specifications
U shaped copper busbar follows your custom drawings. The material is T2 copper. Production follows GB/T5585.1-2026. Copper purity reaches Cu≥99.90%. Total impurities stay below 0.10%. Conductivity is ≥97.3% IACS. Resistivity at 20°C stays ≤0.0177 Ω·mm²/m. Density is 8.9 g/cm³. Tensile strength ranges from 220 to 260 MPa. Yield strength exceeds 170 MPa. Hardness is 65 to 90 HV. Elongation is 17% or higher.
Where U Shapes Provide Solutions
U shaped copper busbar serves specific functions in electrical equipment. Distribution cabinets use them for busbar clamping. Switchgear assemblies rely on them for bridging connections. The shape also works for cable lugs in some designs. Any application that needs two-sided contact benefits from this product. Our customers include panel builders and equipment manufacturers. They value the consistent quality of our U-shaped busbars. The product simplifies their assembly process. Export orders continue to grow. International customers recognize the installation advantages.
Order and Production Information
We start production after receiving your drawings. The design review confirms the width and side spacing. We deliver within one to two weeks. The minimum order is 1000 kilograms. Mixed specifications are allowed. Third-party inspection is welcome. We accept USD, EUR, and CNY.
Technical Parameters
|
Parameter |
Value |
|
Material Grade |
T2 Copper |
|
Copper Purity |
Cu≥99.90% |
|
Standard |
GB/T5585.1-2026 |
|
Electrical Conductivity |
≥97.3% IACS |
|
Resistivity (20°C) |
≤0.0177 Ω·mm²/m |
|
Density |
8.9 g/cm³ |
|
Tensile Strength |
220–260 MPa |
|
Yield Strength |
≥170 MPa |
|
Hardness |
65–90 HV |
|
Elongation |
≥17% |
|
Specifications |
Custom per customer drawings |
|
Custom Lead Time |
1–2 weeks |
